Cmosaix CMX4343 - X-Ray Detector
Competitive Edge
Cmosaix CMX4343
The technology used for the Cmosaix CMX4343 x-ray detector is based on a large array of CMOS cameras and sophisticated mathematical algorithms that produce superior X-ray imaging and enable new applications that were not possible before, at a fraction of the cost of existing technologies. Learn more about CMX x-ray detectors.
Product Application
Record smaller image details at higher resolutions with CMX x-ray detectors – allowing for the diagnostics of medical anomalies at earlier stages, and thus significantly increasing the probability of early intervention, improved patient recovery, and reduced treatment costs.
Chaban's Role
Chaban Medical manufactures the Cmosaix CMX4343 advanced medical CMX X-Ray Detector under highly monitored and strict clean conditions in a Chaban's Class 10,000 clean-room.
Production includes utilizing Chaban's complex optics integration capabilities as well as its expert electronic wiring and assembly departments.

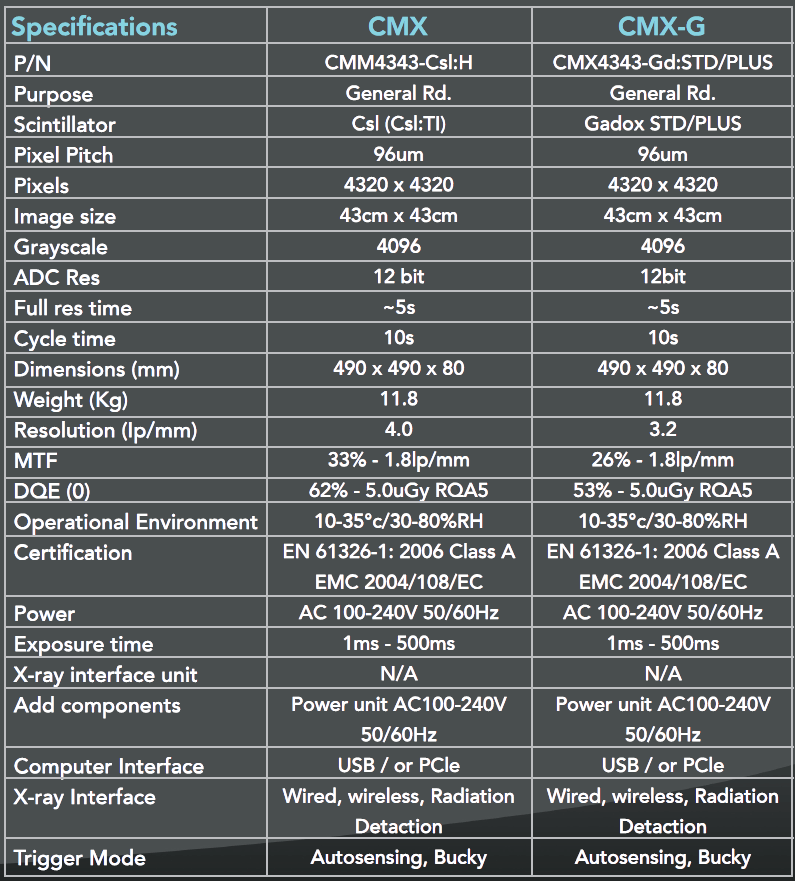

Product Brief
- CMX X-Ray Detector Technology based on a large array of CMOS cameras and complex mathematical algorithms that produce superior X-ray imaging
- Large Active Area for Image (17"x17")
- High Image Quality ( up to 4.0 line/mm) and high spatial resolutions
- Wide Dynamic Range (13 bits)
- Adjustable and controllable dynamic range (controlled gain curve)
- Excellent Sensitivity
- Excellent Reliability & Toughness Features
- Large Active Area
- Includes digital information workflow and archival infrastructure
- Digital communication between remote sites
- Real-time image availability
- Lower X-ray dose for safer diagnostics
- Calibration Free and Maintenance Free (one time factory calibration)
- Can be used on any PC or laptop
- “Fluoro” Model - comming soon
Learn more about the CMX x-ray detector here
